Diagnostic Testing
Specialty Products
All of our products are manufactured to the highest standards in the industry and are supported with our technical expertise and superior customer service.
Specialty products include:
- In-Line Filters
- Laboratory Bench Protector Paper and Pads
- Microbiological Monitors
- Petri Dishes
- Weighing Paper
Material Specs
In-Line Filters
- Materials of Housing Construction: Polypropylene
- Sealing technology: ultrasonically welded
- Membrane material: PTFE (Polytetrafluoroethylene)
- Pore size: 0.22 µm or 0.45 µm
- Membrane diameter: 50 mm
- Connectors: 50 mm: 1/4" to 3/8" barb ports
| Product Catalog # | Product Description |
|---|---|
| ES10500 | PTFE inline membrane filter, 50mm dia, porosity 0.22µm, STERILE filter with 1/4" to 3/8" barb ports, 10 pack |
| ES10502 | PTFE inline membrane filter, 50mm dia, porosity 0.45µm, STERILE filter with 1/4" to 3/8" barb ports, 10 pack |
In-line Venting and Filter, Thin Format
- Thin line in-line venting and filtration units are ideally suited for venting applications and filtration of fluidic volumes too large for syringe filters.
- Variety of standard filter media including borosilicate glass microfiber
- Barbs are a 5-15mm tapered step with 4mm ID, compatible with slip port style high volume syringes
- Ultrasonically welded (no adhesives or solvents) to withstand light duty vacuum (<70cmHg) or positive pressure (50psi)
- Light weight filter will not kink most vent tubing, a problem that causes failed reactions and low yield incubations
- Transparent inlet side allows a visual indication of filter loading
- Typical applications include venting of carboys, stir bottles, reservoir tanks, bio reactors and low-pressure reactor flasks
- Suited for vacuum or positive pressure filtration applications and tank to smaller vessel transfers and filtration of media or broth
- Operates with very low backpressure, even wetting and linear flow rates
- Polypropylene housing is molded with pure virgin material, naturally chemical resistant and has very low extractables commonly known to cause background noise for analysis applications
- Made in the USA and QA tested using a 12-point pre and post manufactured methodology
| Product Catalog # | Product Description |
|---|---|
| TL-0550 | 50mm Inline venting and filter, Thin Format, Nano-Scale glass microfiber Grade A-83 0.5µm, 10/pk |
| TL-0551 | 50mm Inline venting and filter, Thin Format, Borosilicate glass microfiber Grade F 0.7µm, 10/pk |
| TL-0552 | 50mm Inline venting and filter, Thin Format, Borosilicate glass microfiber Grade B 1.0µm, 10/pk |
| TL-0553 | 50mm Inline venting and filter, Thin Format, Borosilicate glass microfiber Grade TSS 1.5µm, 10/pk |
| TL-0554 | 50mm Inline venting and filter, Thin Format, Borosilicate glass microfiber Grade VSS® 1.5µm, 10/pk |
| TL-0555 | 50mm Inline venting and filter, Thin Format, Borosilicate glass microfiber Grade D 2.7µm, 10/pk |
| TL-0570 | 50mm Inline venting and filter, Thin Format, Nylon membrane, hydrophilic 0.45µm, 10/pk |
| TL-0571 | 50mm Inline venting and filter, Thin Format, PTFE membrane, hydrophobic 0.45µm, 10/pk |
| TL-0572 | 50mm Inline venting and filter, Thin Format, UHMWPE membrane, highly hydrophobic 0.22µm, 10/pk |
| TL-0585 | 50mm Inline venting and filter, Thin Format, High purity CA fibrous depth media, hydrophilic, 1.0 µm, 10/pk |
Low Metals Water Analysis Filter, Thin Format
- Polypropylene filter units, 50mm inline configuration with hydrophilic Nylon membrane and 100% pure Quartz low or ultra low metals microfiber prefilter
- Filtration area: 20.0cm2
- Hose Barbs: 5-15mm stepped, ID 4mm (consistent with syringe slip port OD)
- Excellent lot-to-lot reproducibility and are verified against a standard using analysis techniques such as GC, TGA & DSC.
- Manufactured in the USA
| Product Catalog # | Product Description |
|---|---|
| LMNQ-0500 | 50mm Water Analysis Thin Format, Low metals Quartz prefilter, 0.45µm Nylon membrane, 2/pk |
| LMNQ-0501-HT | 50mm Water Analysis Thin Format, Very Low metals Quartz prefilter, 0.45µm Nylon membrane, 2/pk |
| LMNQ-0510 | 50mm Water Analysis Thin Format, Low metals Quartz prefilter, 0.45µm Nylon membrane, 20/pk |
| LMNQ-0511 | 50mm Water Analysis Thin Format, Low metals Quartz prefilter, 0.45µm Nylon membrane, 50/pk |
| LMNQ-0520-HT | 50mm Water Analysis Thin Format, Very Low metals Quartz prefilter, 0.45µm Nylon membrane, 20/pk |
| LMNQ-0521-HT | 50mm Water Analysis Thin Format, Very Low metals Quartz prefilter, 0.45µm Nylon membrane, 50/pk |

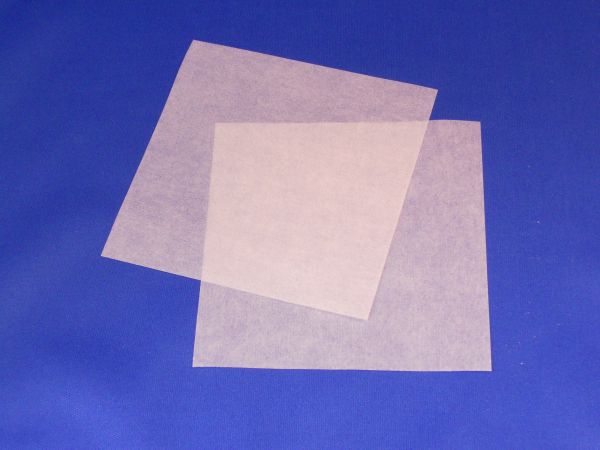

Weighing Paper
- Semi-opaque, milk white calendared cellulose paper, high gloss, non-absorbent, nitrogen-free.
- Basis Weight: Target 30lb (per 3000ft2) 48.8 g/m2
- Range 29.0lb – 31.0lb
- TAPPI method T410
- Target Thickness: 0.0015 inch (.05mm) 1.5mil
| Product Catalog # | Product Description |
|---|---|
| W33 | Weighing Paper, Nitrogen free, squares 3x3in. 500/pk |
| W44 | Weighing Paper, Nitrogen free, squares 4x4in. 500/pk |
| W66 | Weighing Paper, Nitrogen free, squares 6x6in. 500/pk |

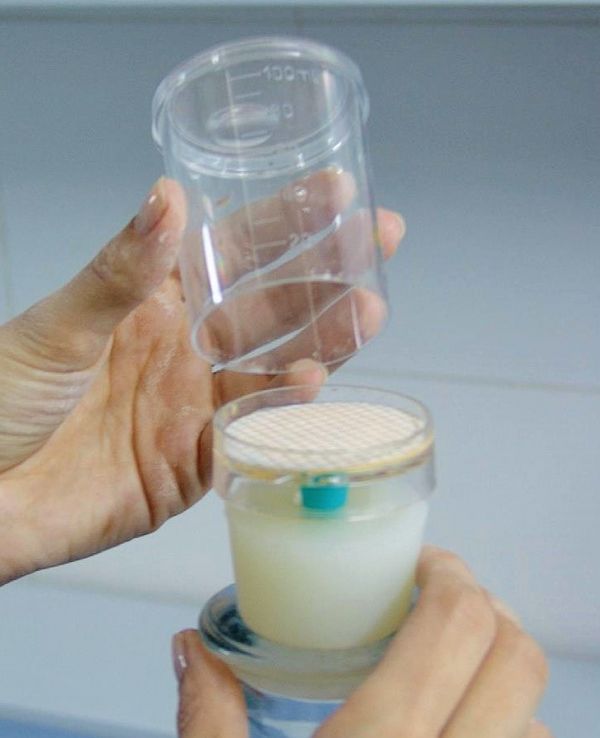

Microbiological Monitors
- Membrane Material: MCE
- Pore sizes: 0.45µm (clarification)
- Membrane Diameter: 47mm
- Membrane Color: White
- Grid Color: Black
- Welded to Cup: No
- Filtration Unit: Polystyrene sterilized by gamma irradiation
| Product Catalog # | Product Description |
|---|---|
| MB-0027 | Disposable sterile filtration units, 100 ml, white, gridded, MCE, membrane filter 0.45µm, not welded, pack of 50 |
Petri Dishes
- Diameter: 60mm
- Height: 15mm
- Material: Crystal Polystyrene
- Sterility Mode: Gamma Radiation
- Available Empty or with Cellulose Pad
| Product Catalog # | Product Description |
|---|---|
| MB-2050 | Petri dishes 55mm diameter sterilized by Gamma radiation. x 720 units |
| MB-2051 | Petri dishes 55mm diameter w/cellulose pad sterilized by Gamma radiation. x 100 units. |

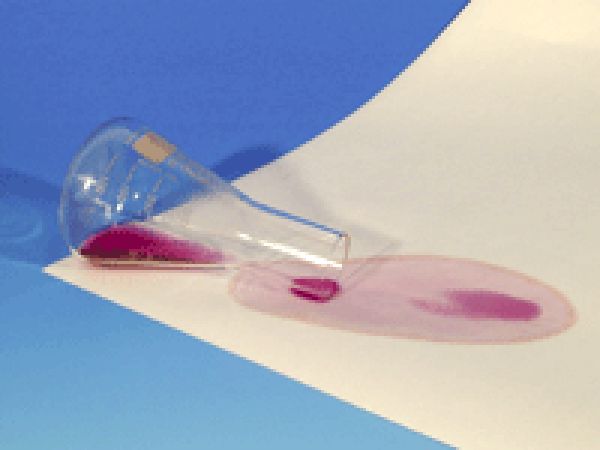

Laboratory Bench Paper
- Material: Pure cellulose with polyethylene backing
- Basis Weight: 140 g/m2 (86 lbs/3,000 ft2) - TAPPI T410
- Thickness: 0.22mm (0.0086 in, 8.66 mil) - TAPPI T411
- Surface:
(A) Smooth, bright white highly absorptive
(B) Smooth polyethylene clear laminate
| Product Catalog # | Product Description |
|---|---|
| BPR4850M | Bench Protector Paper Roll 48CM x 100M, 1 roll/pk |
| BPS4860 | Bench Protector Paper Sheets 48CM x 60CM, 100 sheets/pk |
Laboratory Spill Containment Bench Pad / Wipe
- Designed with a complex proprietary fused 100% Polypropylene (PP) fibrous matrix which is a lightweight polyolefin
- Has high chemical resistance to most short term exposure of organic solvents, acids and alkalis
- 290g/m2 basis weight sufficient to easily handle typical lab bench volume spills up to 600ml safely and quickly.
- Lays flat as a bench pad with sufficient stiffness reducing “bunch up” seen with other competing brands
- Soft enough to be used as a wipe
- Binding dots accumulate fluids and migrate deeper into the pad
| Product Catalog # | Product Description |
|---|---|
| HAP-150180-BX | Chemically resistant, highly absorbent green quilted bench pad, approx. 15x18 inch, 50/pk |
| HAP-150900-BX | Chemically resistant, highly absorbent green quilted bench pad/wipe, approx. 15x9 inch, 100/pk |
| HAP-050450-BX | Chemically resistant, highly absorbent green quilted bench wipe, approx. 5x4.5 inch, 100/pk |
| HAP-150180-CS | Chemically resistant, highly absorbent green quilted bench pad, approx. 15x18 inch, 250/cs |
| HAP-150900-CS | Chemically resistant, highly absorbent green quilted bench pad/wipe, approx. 15x9 inch, 500/cs |
| HAP-050450-CS | Chemically resistant, highly absorbent green quilted bench wipe, approx. 5x4.5 inch, 500/cs |
Our OEM Capabilities
We offer OEM capabilities for engineering, molding and insertion of many additional membrane and membrane/pre-filter options. We can work with most of our own membrane and specialty materials as well as convert your supplied product. Please contact us for full engineering capabilities as well as process flow and project management services in this field.
- Filter insertion in clean room by manual as well as fully automated means
- Molding in place, over molding and support structure molding of fragile media
- Ultrasonic welding of barrel structure for increased leak / burst resistance
- Multi-process mold extensions for inclusion of single or multi-level prefiltration media
- Digital variable print capabilities along arc on barrel face for identification purposes
- Blister packing for EO and gamma sterilization
- Pure virgin PP, verified by HPLC against U/L extractables
Tremont offers an impressive list of manufacturing capabilities and expertise in glass microfiber and cellulose filter media. We leverage a longstanding and contractual relationship between several mills to put 6 papermaking machines and formers into production. With this enormous capacity at our disposal, we are able to take a project from lab bench through pilot scale and ultimately full production with ease.
Our partner mill output exceeds 120 grade variants manufactured in the USA and internationally. With chemists and scientists of several disciplines, experienced papermakers, the finest controls-on-machine plus a rigorous QA protocol, it is not often a project challenge is beyond our capability.
Paper making capabilities:
- Paper making machines in flat bed, slant bed, high speed fourdrinier and rotary forming styles
- Furnish capabilities of: glass blends, cotton cellulose, soft wood, cotton/wood pulp, synthetics
- Various levels of water filtration, including R.O. for superior purity in analytical and diagnostic applications
- Web widths from 24 inch (60.9cm) to 72 inch (182.8cm)
- Basis weights from 8lb to 138lb @ 3000ft2 (13g/m2 to 225g/m2)
- Binder free, Binder burn off, Acrylic, PVA and hybrid chemistries
- Gantry mounted traversing densitometry as well as most other high-resolution verification sensors
- Static pressure, mixed and multi-stage head boxes
- Binderless, mixed box, spray on and pulper-saturation style binder introduction
- Single and multi-stage vacuum boxes
- Several screen variants for very high consistency formation
- Wet stream or dry deckle trim
- Unique end of machine board cut-off capability for very high density, high basis weight celluloses
- FDA grade manufacturing capabilities
- Lot selection, furnish verification and supply chain assurance
- Cotton batch traceability "to farm" with unique commodity procurement services
- Converting capabilities
After the papermaking process is complete, our experienced converting staff brings your project from large master rolls down to narrow reels or sheets with ease. Sheeting, die cutting and other unique converting operations are performed at our Hawthorne, NJ facility under our strict ISO production environments.
