Borosilicate Glass Microfiber Filters

Engineered for High Load Capacity, Rapid Flow, and Exceptional Clarity

Borosilicate Glass Microfiber Filters

Glass microfiber filters offered in this product range are produced from 100% borosilicate glass microfiber without the use of binders or strengthening agents. These filters offer many advantages in a wide range of analytical applications.

The fibers used to manufacture these depth filters are smooth and uniform. This permits their characteristically high flow rates while allowing retention of exceptionally small particles and high load capacity. These characteristics are particularly important in applications involving high concentrations of particulate or gelatinous substances. In choosing the appropriate filter for a specific application, careful consideration should be given to the physical form and concentration of the material to be captured by the filter.

Additional Grades of Specialty Glass Microfiber

Product Literature

Pre-Washed and
Pre-Weighed VSS and TSS filters

Interactive Material Selector Tool

Technical Data

Catalog List (opens in new tab)

Glass Microfiber Grades and Descriptions

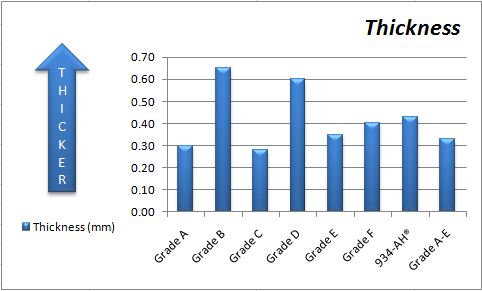

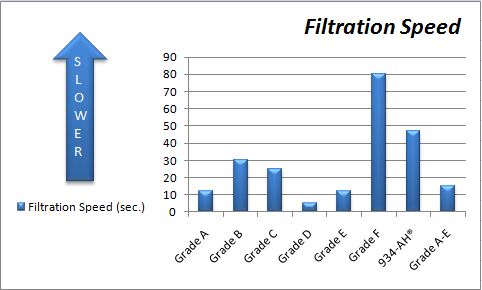

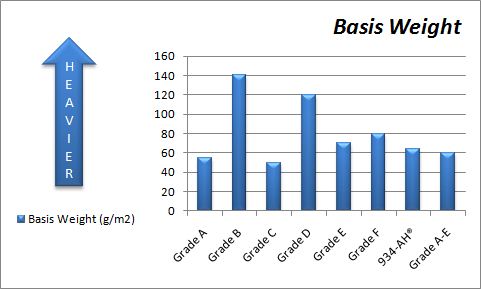

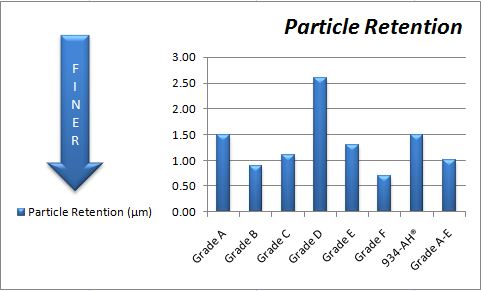

Grade Nomenclature	Particle Retention (μm)	Material Type	Thickness (mm)	Filtration Speed (sec.)	Basis Weight (g/m2)
A-83	<0.50	Binderless NanoGF Borosilicate Glass Microfiber	0.40	84	82
MD	0.5 - 2.7	Binderless NanoGF MultiDensity Borosilicate Glass Microfiber	Varies	Varies	Varies
A	1.60	Binderless Borosilicate Glass Microfiber	0.30	12	55
B	1.00	Binderless Borosilicate Glass Microfiber	0.66	30	140
C	1.20	Binderless Borosilicate Glass Microfiber	0.28	25	50
D	2.70	Binderless Borosilicate Glass Microfiber	0.60	5	120
E	1.50	Binderless Borosilicate Glass Microfiber	0.35	12	70
F	0.70	Binderless Borosilicate Glass Microfiber	0.40	80	80
A-E	1.00	Binderless Borosilicate Glass Microfiber	0.33	15	60
TSS	1.50	Binderless Borosilicate Glass Microfiber	0.43	47	64
VSS®	1.50	High Heat Binderless Borosilicate Glass Microfiber	0.43	47	64
934-AH®	1.50	High Heat Binderless Borosilicate Glass Microfiber	0.43	47	64
Quartz-A	2.20	High Heat Binderless Quartz Glass Microfiber, 950°C	0.47	<5	85
Quartz-A-HT	2.20	Ultra High Heat Binderless Quartz Glass Microfiber, 1150°C	0.47	<5	85
TCLP	0.70	Acid Treated and Washed Binderless Borosilicate Glass Microfiber	0.40	80	80

Glass Microfiber Specifications

Depth filtration categorizes filter media that traps particulate within the random matrix of fibers found within the thickness of the media. The efficiency rating of the filter is characteristic of the complex void space structure that develops as the fibers overlap. The fibrous material within the filter is commonly glass microfiber, cellulose or polypropylene. In depth filters using glass microfiber, the purity of the filter is dictated by the presence of, if any, binder material that acts as a strengthening agent and aids in holding the fibers together. All of the media described on this page are 100% borosilicate glass and free of binders.

Because of the characteristically high flow rates of depth filters, they are generally used in applications such as single and multi process removal of sediment and coarse particulate. Glass microfiber filters without binders are an ideal medium to entrap sediment for further analysis and counting due to the inert matrix. Also, depth filtration media are commonly used for pre-filtration prior to surface filtration with substrates such as membranes.

Glass Microfiber Characteristics at a Glance

Fastest flow rate
High load capacity
Retention of particles to sub-micron size
Temperature range up to 500°C
Use in liquid and gaseous filtration
Inert fiber composition
Free of binders or additives

Glass Microfiber Grades

GRADE A-83

Imagine the loading capacity of a binderless glass microfiber filter with the tightly regulated pore size of a microfiltration membrane.

Now it's possible with Grade A83 NanoGF. This new grade has a particle retention of 0.5µm. It has >20x loading capacity of an equivalent porosity MCE or CN membrane and >15x the flow rate. Back pressure is nearly non-existent in comparison to surface membranes.

Chemically inert, pure binderless borosilicate glass with no sizing additives or other surfactants. Low background noise in LC/GC/MS and very low extractables in presence of aggressive solvents. There are many filter materials which make the claim of "nano-scale" fiber, but Grade A83 is tested by an independent laboratory using the latest in fiber analysis and SEM image quantification. With >85% of the fiber content between 300nm -100nm, this material is truly one of the highest surface area binderless glass microfiber products on the market today.

GRADE MD

Tightly regulated pore size of a microfiltration membrane with built in prefiltration.

This exciting new product is a 100% borosilicate binderless glass microfiber filter which demonstrates several layers of density along with a unique surface formation that speeds and optimizes filtration. These filter disks can handle sample preparation tasks typically considered too challenging for other analytical filter products. This unique product bridges the gap between macro and micro analytical filtration.

Using a newly developed production method Tremont produces this filter with a final retention stage selection of <0.5μm to 2.7μm (the same as Tremont's binderless glass microfiber line of products). The unique filter has a robust prefilter built-in which captures particulate from >300μm

Specialty Binderless Glass Microfiber Grades

QUARTZ A

Fine porosity with a 99.999% efficiency in air filtration for the retention of 2.20µm particles. Flow rate 1.1 - 1.35 m³/min (Resistance 95mmH₂0@10.5 ft/min). Primarily used in air pollution monitoring, atomic absorption spectroscopy, flame emission spectrometry and other applications where an extremely critical analysis is needed. Effective temperature range of up to 1000 °C. Binderless quartz microfiber

QUARTZ A HT

High temperature, fine porosity with a 99.999% efficiency in air filtration for the retention of 2.20µm particles. Flow rate 1.1 - 1.35 m3/min (Resistance 95mmH20@10.5 ft/min). Primarily used in air pollution monitoring, atomic absorption spectroscopy, flame emission spectrometry and other applications where an extremely critical analysis is needed. Higher effective temperature range of up to 1150 °C. Binderless quartz microfiber

Grade TSS

Binderless borosilicate glass microfiber high efficiency (HEPA type) filter medium. Liquid filtration properties have been specifically designed for EPA Methods 2540C and 2540D for testing dissolved and suspended solids in water and wastewater. High flow rate with high capacity. Media has no added extractables to aid in the elimination of sample contamination. Excellent wet strength. Other common applications include gravimetric analysis of air pollutants, membrane support pads, membrane prefilters, clarification of reagent and buffer solutions, filtration of eluent for HPLC and moisture analysis pads

Grade VSS®

A binder free material manufactured using a proprietary glass chemistry which permits usage in high heat applications beyond typical borosilicate glass blends. Ideally suited for determination of "Fixed & Volatile Solids Ignited at 550°C Method 2540E. Low fiber shedding improves quality assurance of test results and low percentage of weight loss when used in gravimetric tests. High loading capacity is an attribute of the high surface area and complex pore structure. Material is also compliant with the requirements of standard methods 2540C & 2540D and EPA Method 160.2 for establishing water quality in suspended solids content. Total Suspended Solids (TSS) are defined as those which are retained by a "glass-fiber filter disk without organic binder". Also widely used in air pollution monitoring, high temperature flue gas and filtration of high temperature solvents.

Grade TCLP

Binderless borosilicate glass microfiber filter media with a particle retention of 0.7µm. Acid treated and multi-stage deionized water rinsed to conform to EPA Method 1311. Inherently low Barium and Zinc Borosilicate Glass and resistant to acids and bases. Recommended for use in U.S. EPA Method 1311 "Toxicity Characteristic Leaching Procedure". Method scope: "The TCLP is designed to determine the mobility of both organic and inorganic analytes present in liquid, solid and multiphasic wastes." Saves time and waste disposal expense in the lab by eliminating technician acid treating and rinsing procedures.

The trademark 934-AH® is owned by GE Healthcare/Whatman Inc. and used under exclusive license for purposes of private label.

Glass Microfiber Manufacturing

Tremont offers an impressive list of manufacturing capabilities and expertise in glass microfiber and cellulose filter media. We leverage a longstanding and contractual relationship between several mills to put 6 papermaking machines and formers into production. With this enormous capacity at our disposal, we are able to take a project from lab bench through pilot scale and ultimately full production with ease.

Our partner mill output exceeds 120 grade variants manufactured in the USA and internationally. With chemists and scientists of several disciplines, experienced papermakers, the finest controls-on-machine plus a rigorous QA protocol, it is not often a project challenge is beyond our capability.

Paper making capabilities:

Paper making machines in flat bed, slant bed, high speed fourdrinier and rotary forming styles.
Furnish capabilities of: glass blends, cotton cellulose, soft wood, cotton/wood pulp, synthetics
Various levels of water filtration, including R.O. for superior purity in analytical and diagnostic applications.
Web widths from 24 inch (60.9cm) to 72 inch (182.8cm).
Basis weights from 8lb to 138lb @ 3000ft² (13g/m² to 225g/m²).
Binder free, Binder burn off, Acrylic, PVA and hybrid chemistries.
Gantry mounted traversing densitometry as well as most other high-resolution verification sensors.
Static pressure, mixed and multi-stage head boxes.
Binderless, mixed box, spray on and pulper-saturation style binder introduction.
Single and multi-stage vacuum boxes.
Several screen variants for very high consistency formation.
Wet stream or dry deckle trim.
Unique end of machine board cut-off capability for very high density, high basis weight celluloses.
FDA grade manufacturing capabilities.
Lot selection, furnish verification and supply chain assurance.
Cotton batch traceability "to farm" with unique commodity procurement services.

Converting capabilities:

After the papermaking process is complete, our experienced converting staff brings your project from large master rolls down to narrow reels or sheets with ease. Sheeting, die cutting and other unique converting operations are performed at our Hawthorne, NJ facility under our strict ISO production environments.

High speed rotary knife sheeting (+/- 0.03125 inch).
Low speed, multi roll CNC sheeting (+/- 0.03125 inch).
Low tensile strength sheeting capabilities handling the most challenging binderless glass grades to 60 inch web width.
Vacuum stack counting with laser verification and tab insertion minimum 5 sheet count.
Narrow roll slitting down to 1/4inch web width even in low tensile glass microfiber.
Shaftless rewind with core ID's down to 1/2inch ID.
Die cutting in manual, semi-automatic and automatic repeating modes. Slow speed, platen, clicker, c-frame, fixed tool and bottom-up presses.
Tonnage from 1 to 140ton in hydraulic and mechanical types.
Narrow web <5.125 inch (13cm) rotary die cutting with unique "zero-tensile" capabilities, inline micro perforation and rotary parts cut-off. Vacuum in-field parts removal.
Programmable guillotine cutters from 30 to 44 inch (76.2cm – 111.76cm) width.
Spreading table station for woven fabrics fabrication.
Hole drilling, slotting and complex notching.
Heat treating processes ranging from low temp, long exposure to flash and 1100°C muffle furnace treatments.
Laminating via heat set, single and dual surface in web widths of 60 inch.
